Setcom Radio Cable

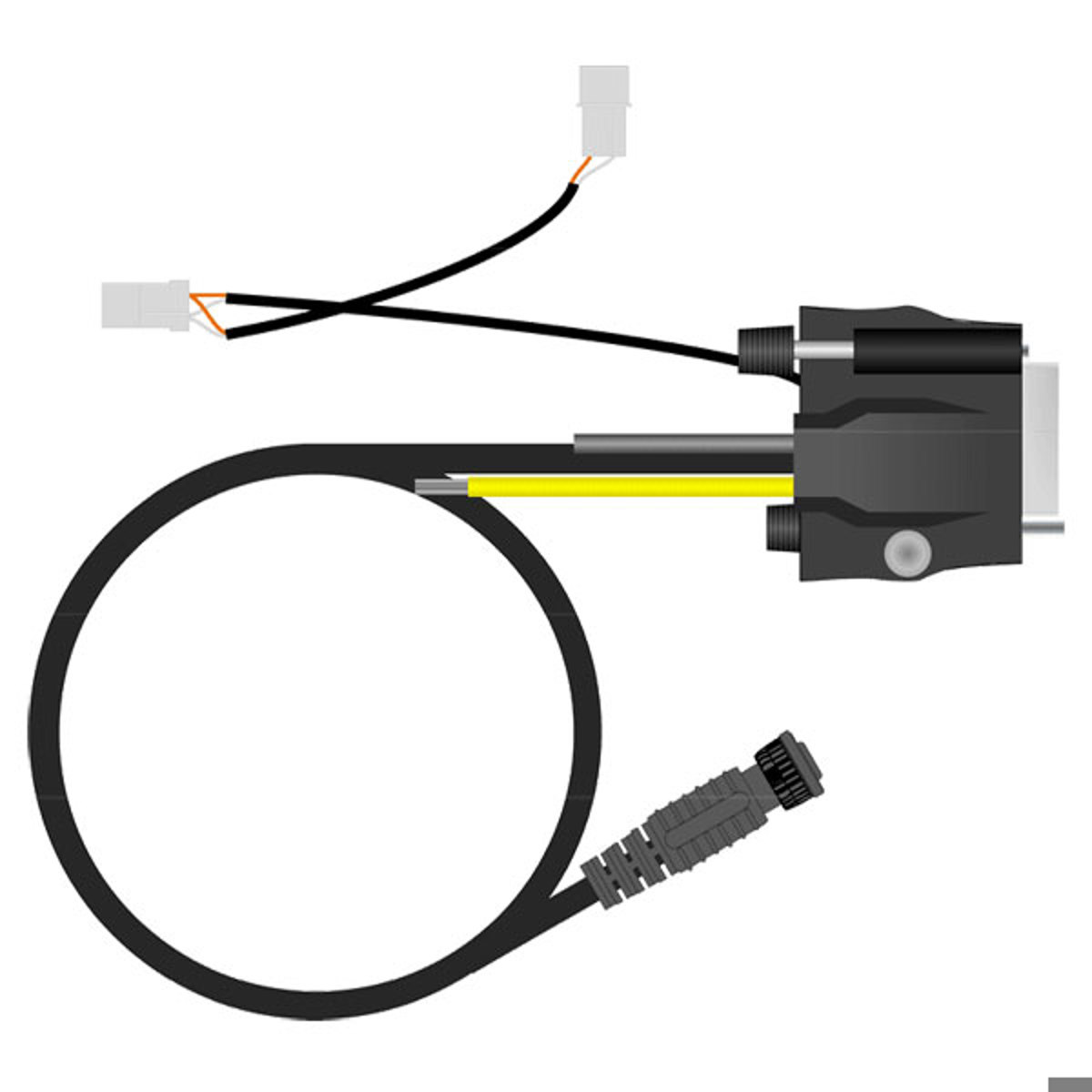

Setcom Radio Cable (RC-18MU4K)

Setcom’s portable radio adapter cables (PRACs) allow radio transmit headsets, normally designed for use with an intercom system, to be used with a portable radio.

Radio interface for 26-pin accessory port connector on the remote head or RF deck (dash-mount) and the IM-950 Master Station

Compatible with Motorola APX 8500, APX 7400, APX 6500, APX 4500, XTL 5000, XTL 2500, XTL 1500

18 foot length, radio programming determines functionality of ignition sense wire, external speaker can be attached to the 2-pin female connector

12 month warranty

For remote-head radio setups, the radio cable’s RX Audio connector must be connected to the speaker connector on the power cable for the control head (typically HKN6188 or HKN6187 cable).

For dual or multi-head radio setups, the speaker connection should be made on the primary control head's power cable.

For dash-mount radio setups the 2-pin Male RX Audio connector is not used, and the speaker connection is through the 26-pin Radio Interface.
