Draeger Tube, Carbon Disulfide 30/A 32-3200ppm

$95.00
Availability: Call for Availability
Product Code: CH23201
Brand: DRAEGER SAFETY INC.
+

Draeger Tube - Carbon Disulfide 30/a
Order No. CH 23 201

Application Range
Standard Measuring Range 0.1 to 10 mg/L
Number of Strokes n: 6
Time for Measurement: approx. 1 minute
Standard Deviation: ± 15 to 20%

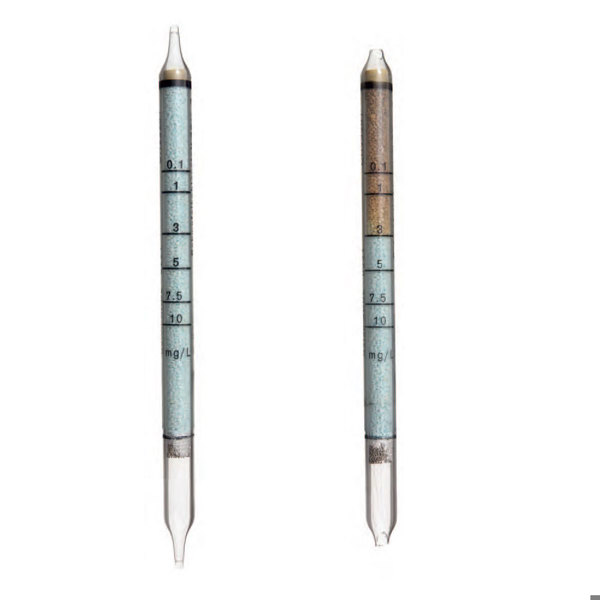

Color Change: pale blue to brown

Ambient Operating Conditions
Temperature: 0 to 40° C ~ 32 to 104° F
Absolute Humidity: < 30  mg H2O / L

Reaction Principle
CS2 + 4 NHR2 + Cu2  Cu(SCSNR2)2 + 2 NH2R2+

Cross Sensitivity
Hydrogen sulfide is indicated, producing a pale green discoloration. It is impossible to measure carbon disulfide in the presence of hydrogen sulfide.
